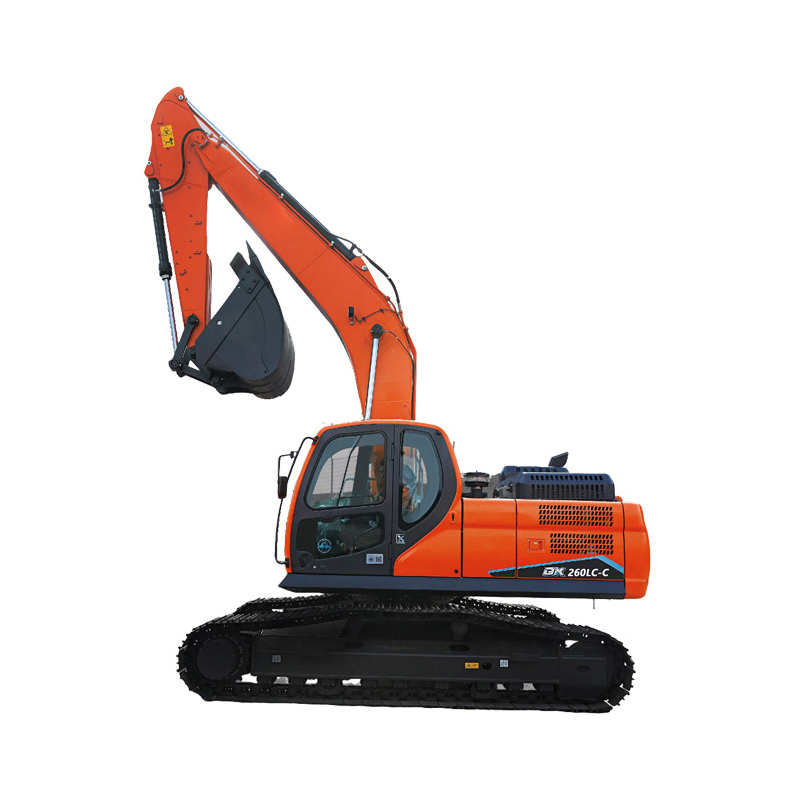

DX260LC-C Medium Excavator for Sale – Top China Supplier
The DX260LC-C medium excavator is a high-performance machine designed for heavy-duty construction and excavation tasks. Manufactured in China, this excavator offers reliable and efficient operation at an affordable price, providing exceptional value compared to similar models. The DX260LC-C is a great choice for those seeking powerful excavation capabilities at a more competitive price.
Whether you're looking for a DX260LC-C excavator for construction, mining, or demolition, this machine is the ideal option. Unlike second-hand excavators, which may come with hidden costs and maintenance issues, the DX260LC-C offers brand new, high-performance features at a lower price, making it a smarter investment. It competes with top brands like Doosan and Cat, providing similar performance without the premium price tag.
DX260 Excavator Technical Specifications and Performance Overview
Technical Specifications+
| Item | Label | Unit | Spec 1 | Spec 2 |
|---|
| Boom Length |
| mm | 5,700 | - |
| Arm Length |
| mm | 2,900 | 2,600 |
| Bucket Capacity |
| m³ | 1.2 | 1.3 |
| Maximum Digging Reach | A | mm | 9,873 | 9,640 |
| Maximum Digging Reach at Ground Level | B | mm | 9,699 | 9,460 |
| Maximum Digging Depth | C | mm | 6,592 | 6,350 |
| Maximum Loading Height | D | mm | 6,830 | 6,605 |
| Minimum Loading Height | E | mm | 2,501 | 2,735 |
| Maximum Digging Height | F | mm | 9,616 | 9,330 |
| Maximum Bucket Pin Height | G | mm | 8,274 | 8,105 |
| Maximum Vertical Digging Depth | H | mm | 3,929 | 3,035 |
| Maximum Vertical Radius | I | mm | 7,988 | 8,305 |
| Maximum Digging Depth on 8-Foot Flat Ground | J | mm | 6,411 | 6,160 |
| Minimum Digging Radius on 8-Foot Flat Ground | K | mm | 2,858 | 2,890 |
| Minimum Digging Distance | L | mm | 562 | 1,240 |
| Minimum Swing Radius | M | mm | 3,560 | 3,615 |
| Bucket Stretch Angle | d | º | 177 | - |
| Tail Swing Radius | N | mm | 2,794 | - |
| Transport Height (to Boom Top) | O | mm | 2,950 | - |
| Transport Height (to Hose Top) | P | mm | 3,065 | 3,080 |
| Transport Length | Q | mm | 9,506 | - |
| Transport Width | R | mm | 2,990 | - |
| Counterweight Ground Clearance | S | mm | 1,096 | - |
| Overall Height (to Cab Top) | T | mm | 2,985 | - |
| Swing Frame Width | U | mm | 2,870 | - |
| Cab Height (Above Swing Frame) | V | mm | 832 | - |
| Cab Full Width | W | mm | 1,008 | - |
| Distance Between Guide Wheel and Drive Wheel Centers | X | mm | 3,650 | - |
| Track Length | Y | mm | 4,440 | - |
| Overall Width | Z | mm | 2,990 | - |
| Track Width | a | mm | 600 | - |
| Track Height | b | mm | 950 | - |
| Minimum Ground Clearance | c | mm | 475 | - |
Main Specifications+
Engine
| Model | Isuzu 6HK1 |
| Type | Inline |
| Induction | Turbocharged |
| Cylinder Count | 6 |
| Bore | 115 mm |
| Piston Stroke | 125 mm |
| Rated Power | 177 kW (237 HP) / 2,400 rpm |
Rotary System
| Drive Method | Hydraulic Drive |
| Reduction Mechanism | Planetary Gear Reduction |
| Rotary Operation Brake | Wet Multi-Plate Brake |
| Rotary Speed | 10.5 rpm |
Drive Device and Brakes
| Steering Control | Foot Pedal and Joystick Integrated Control |
| Drive Method | Hydraulic Drive |
| Travel Motor | Axial Piston Motor |
| Travel Speed (High/Low) | 5.7 / 3.1 km/h |
| Operation Brake | Hydraulic Brake |
| Parking Brake | Wet Multi-Plate Brake |
Travel Part
| Center Frame | X-Frame |
| Track Frame | Box Section Frame |
| Track Belt | Auto Lubricated Track |
| Track Adjustment (High/Low) | Grease Tensioning |
| Track Shoes | 49 on each side |
| Carrier Roller | 2 on each side |
| Idler | 8 on each side |
Hydraulic System Parameters+
| Hydraulic Motor |
|---|
| Travel Motor | Axial Piston × 2 |
| Rotary Operation Brake | Wet Multi-Plate Brake |
| Main Pump |
|---|
| Type | Variable Displacement Piston Pump |
| Maximum Flow | 2 × 212 ℓ/min |
| Relief Valve Setting |
|---|
| Working Device Hydraulic Circuit | 350 kgf/cm² (34.3 MPa) |
| Travel Hydraulic Circuit | 350 kgf/cm² (34.3 MPa) |
| Rotary Hydraulic Circuit | 270 kgf/cm² (26.5 MPa) |
| Tank Capacity |
|---|
| Fuel Tank | 400 ℓ |
| Hydraulic Oil Tank (Full) | 195 ℓ |
| Coolant/Lubricant Capacity (Change) |
|---|
| Radiator | 26 ℓ |
| Engine | 27 ℓ |
| Travel Reduction Gear Oil | 2 × 3.3 ℓ |
| Rotary Reduction Gear | 5 ℓ |
Working Weight+
(Operator, Lubricant, Coolant, Full Fuel Tank, and Standard Configuration)
| Parameter | Standard Type | Optional Type |
|---|
| Boom (mm) | 5,700 HD | ← |
| Arm (mm) | 2,900 HD | 2,600 HD |
| Bucket (m³) | 1.2 | 1.3 |
| Track Plate (mm) | 600 | ← |
| Working Weight (ton) | 22.02 | 22.26 |
| Ground Pressure (kpa) | 45 | 46.2 |
Maximum Digging Force (ISO)
| Parameter | Standard Type | Optional Type |
|---|
| Bucket ton(kN) | 15.2 (149) | ← |
| Arm ton(kN) | 10.8 (105) | 11.02 (108) |
Cylinders
| Type | Specification |
|---|
| Boom | 2-125mm × 85mm × 1,263mm |
| Arm | 1-135mm × 95mm × 1,443mm |
| Bucket | 1-120mm × 80mm × 1,060mm |
Usage Scenarios
The DX260LC-C medium excavator is perfect for a wide range of applications:
- Large-scale construction projects requiring high-performance excavation.
- Mining and quarry work, handling heavy materials with ease.
- Demolition tasks, including breaking concrete and removing debris.
- Road construction and infrastructure development.
- Landscaping and large earth-moving operations.
Frequently Asked Questions
What is the price of a DX260LC-C excavator?+
The DX260LC-C excavator price is highly competitive when compared to other brands like Develon excavator or Doosan excavator replica. As a China excavator, it offers excellent value for money while maintaining top-tier performance.
What are the advantages of the DX260LC-C compared to a Doosan excavator?+
The DX260LC-C is a Doosan clone excavator, offering similar performance, fuel efficiency, and features at a significantly lower price. It’s a great choice for buyers looking for a medium excavator for sale with excellent capabilities but at a lower cost than the original.
Can I get a used DX260LC-C excavator?+
Yes, we offer a range of used DX260LC-C excavators for sale, all in excellent condition. These second-hand machines are inspected for quality and performance, providing a budget-friendly option for your excavation needs.
What is a long reach boom for an excavator?+
A long reach excavator boom allows for extended reach during digging and lifting tasks. If you need more flexibility for your excavation work, you can purchase the DX260LC-C with a long reach excavator boom attachment for additional performance.
Conclusion
If you're in the market for a reliable and affordable DX260LC-C excavator for sale, look no further. Our Chinese medium excavator offers excellent value for money while delivering high performance. Whether you need a long reach excavator for sale or a custom-built machine, the DX260LC-C can be tailored to your exact needs. contact us today to learn more about the DX260LC-C excavator price and how we can help with your excavation needs.
