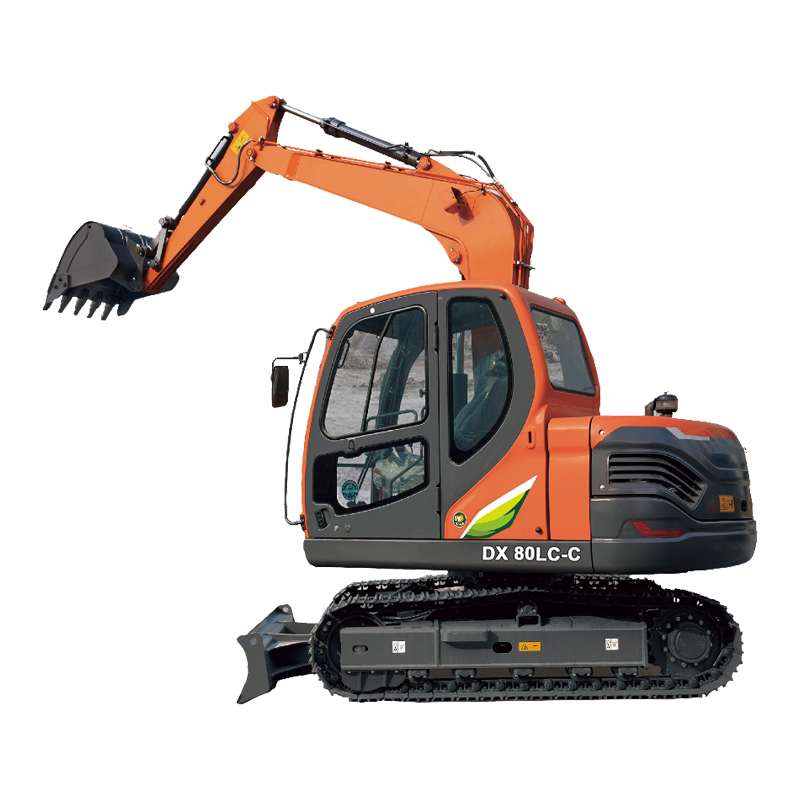

DX80LC-C Small Excavator for Sale – Top China Manufacturer
Introducing the DX80LC-C Small Excavator, a high-performance machine designed for efficiency and reliability in various construction tasks. Manufactured by one of China’s leading excavator manufacturers, this model combines the strength and durability of global brands like Cat and Develon(Doosan) at a competitive price. Ideal for small to medium-scale projects, the DX80LC-C offers a powerful engine and a range of features that make it perfect for digging, trenching, and more.
Whether you're looking for a small excavator for sale or a cheap small excavator, the DX80LC-C delivers exceptional performance at an affordable price. Competing with popular models from Cat and Develon(Doosan) , this machine provides outstanding features without the premium price tag. It’s available as a new small excavator or a used small excavator, with options to customize according to your project needs.
DX80 Excavator Technical Specifications and Performance Overview
Technical Specifications+
| Model | DX80 | ||
| Maximum digging distance | A | (mm) | 6,270 |
| Maximum digging distance at ground level | B | (mm) | 6,115 |
| Maximum digging depth | C | (mm) | 4,080 |
| Maximum loading height | D | (mm) | 5,170 |
| Minimum loading height | E | (mm) | 2,345 |
| Maximum digging height | F | (mm) | 7,100 |
| Maximum bucket pin height | G | (mm) | 6,150 |
| Maximum vertical arm digging depth | H | (mm) | 2,670 |
| Maximum vertical radius | J | (mm) | 4,750 |
| Maximum digging depth on 8-foot flat ground | K | (mm) | 3,725 |
| Minimum digging radius on 8-foot flat ground | L | (mm) | 1,120 |
| Minimum digging distance | M | (mm) | 560 |
| Minimum rotation radius | N | (mm) | 1,745 |
| Bucket stretch angle | a | (°) | 165 |
| Tail rotation radius | c | (mm) | 1,750 |
| Transport length | d | (mm) | 6,030 |
| Wheel width | e | (mm) | 2,110 |
| Track length | f | (mm) | 2,750 |
| Track length (to bulldozer) | g | (mm) | 3,210 |
| Track height | h | (mm) | 695 |
| Track gauge | i | (mm) | 1,650 |
| Chassis width | j | (mm) | 2,100 |
| Minimum ground clearance | k | (mm) | 370 |
| Fuselage width | l | (mm) | 2,130 |
| Transport width | m | (mm) | 2,180 |
| Width of dozer shovel | n | (mm) | 2,100 |
| Dozer height | O | (mm) | 418 |
| Transport height | P | (mm) | 2,680 |
| Transport height (to big arm) | Q | (mm) | 2,610 |
Main Specifications+
| Engine | |
| Model | Yanmar 4TNV94L |
| Number of cylinders | 4 |
| Cylinder diameter/piston | Φ94/110mm |
| Rated power | 36.2kW(49.2PS)/2,200rpm |
| Boom | 3,620mm |
| Arm | 1,670mm |
| Bucket | 0.3m |
| Track shoes | 450mm |
| Operating weight | 7.5ton |
| Rotation speed | 10.7rpm |
| Running speed (high/low) | 4.5/2.9km/hr |
| Fuel tank capacity | |
| Fuel tank | 130L |
| Hydraulic tank | 90L |
| Maximum digging force (ISO) | |
| Bucket | 5.3ton |
| Arm | 3.7ton |
| Safety valve setting value | |
| System pressure (front working device) | 250kg/cm² |
| System pressure (rotation part) | 220kg/cm² |
| System pressure (running part) | 250kg/cm² |
| Cylinder | |
| Boom cylinder (bore x stroke) | 110mm×865mm |
| Arm cylinder (bore x stroke) | 100mm×813mm |
| Bucket cylinder (bore x stroke) | 85mm×680mm |
Usage Scenarios
The DX80LC-C 8 Ton Small Excavator is perfect for a variety of applications:
- Digging and trenching in small to medium construction projects.
- Landscaping and gardening tasks.
- Utility installation and maintenance.
- Demolition and excavation work.
Frequently Asked Questions
What is the price of the DX80LC-C Small Excavator?+
How much is a Doosan excavator in China?+
Can I buy a second-hand small excavator?+
What are the benefits of buying a China excavator?+
Conclusion
If you’re in the market for an affordable small excavator, the DX80LC-C 8 Ton Small Excavator from one of the top excavator manufacturers in China is the ideal choice. Whether you're looking for a new small excavator, a used Doosan excavator, or a cheap small excavator, the DX80LC-C delivers the performance and durability you need. We also offer custom small excavators for sale, ensuring your exact specifications are met. Contact us today for more information or to request a quote. Our team is here to assist you in finding the perfect machine for your construction needs.
