Premium quality mechanical grapples are built for the most severe high-speed demolition, rock, and waste handling applications.
The grab feature with a fully-boxed structural design,simple to install, no hydraulics are required, less maintenance cost, fast return.

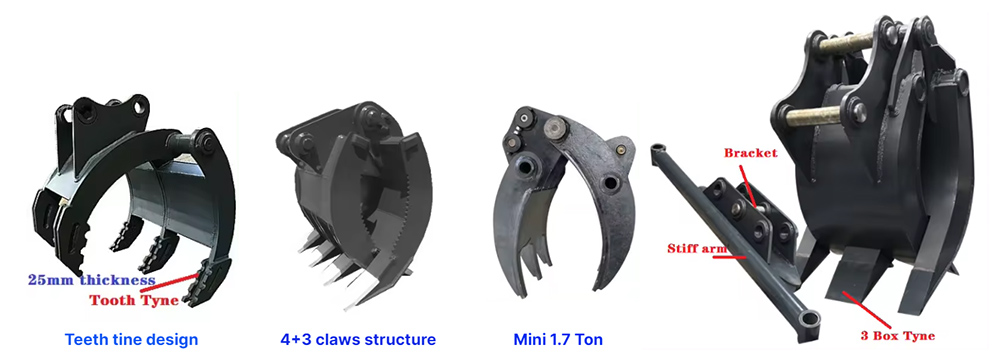

Main Features
- High strength wear-resistant steel NM 400 is adopted as a whole, which has super toughness and firmness, reduces the loss in operation and prolongs the service life.
- The opening is huge, with strong bite force, which can easily grab materials for various operations. It can be easily operated without effort, saving effort and time.
- Mechanical parts, without hydraulic device, are easy and fast to install, improving work efficiency and reducing installation costs.
Parameters
| Model | Excavator tonne | (H)mm | (W1)mm | (W2)mm | (W3)mm | Weight(kg) |
| HM01 | 1.7-3T | 580 | 400 | 220 | 720A | 85 |
| HM02 | 3-5T | 700 | 550 | 290 | 880 | 175 |
| HM04 | 6-10T | 940 | 590 | 330 | 1020 | 320 |
| HM06 | 12-16T | 1140 | 680 | 380 | 1310 | 790 |
| HM06-A | 15-20T | 1200 | 820 | 550 | 1645 | 1200 |
| HM08 | 20-25T | 1327 | 1120 | 680 | 1670 | 1400 |
| HM10 | 24-35T | 1532 | 1180 | 720 | 1900 | 1750 |
| HM20 | 35-50T | 1868 | 1250 | 790 | 2230 | 3082 |

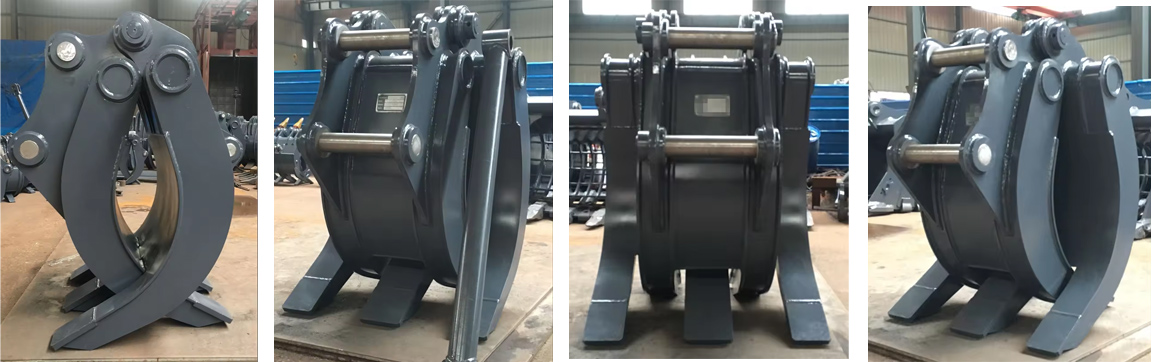

Related photos
Related videos

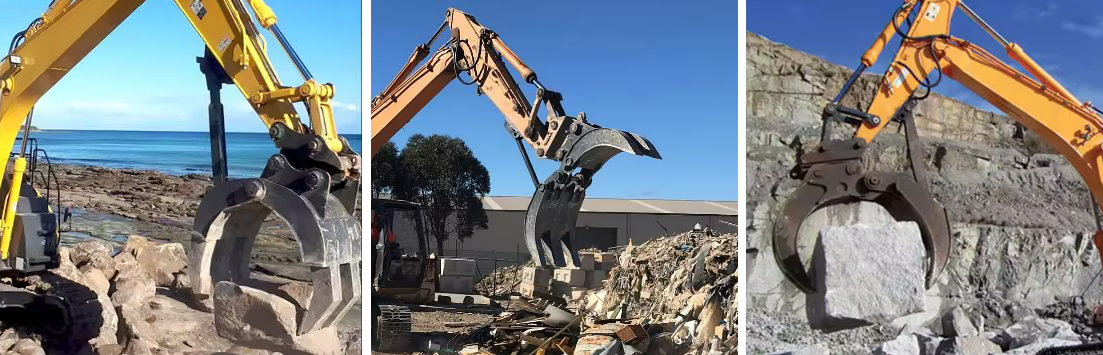

Application Realistic Photos
